BRICK GT - Garrock's wheel meets DBS Power [UPDATE]

Postby DBS » 27 Feb 2013, 20:16

Starting this thread a little early because the landing gear came together like a miracle :!:

After having an hour and a half conversation with Garrock last night this is finally gonna happen...

Garrocks Wheel Mod... Meets ...1000mw Boost... Meets ...DBS Nexus 7 Heli-Pad Mod

So as the idea was talked out we had discussed a belly mount wheel because it just makes sense to me... A lot of my long range flights need to be at a decent altitude to avoid multipath interference ... So the antenna just makes sense on the bottom to avoid interference from props and motors and ESC's and wiring etc... (I'm always looking up at the drone... The antenna should be looking down at me)

This lead to some brainstorming this morning on my part to come up with some landing gear (lets call it launching gear cuzz I don't land anyway) that would allow me to drop the wheel antenna down below the PC boards and still be able to set the drone down and flat trim and launch... They needed to give me over an inch of clearance and be as lightweight as possible...

I was walking past my stack of indoor and outdoor hulls that never get used anymore and I seen it...

That piece looks like a leg :shock:





So some razorblading and some hot glueing and it has been born




------- BRICK GT -------
(the GT stands for Galapagos Tortoise)

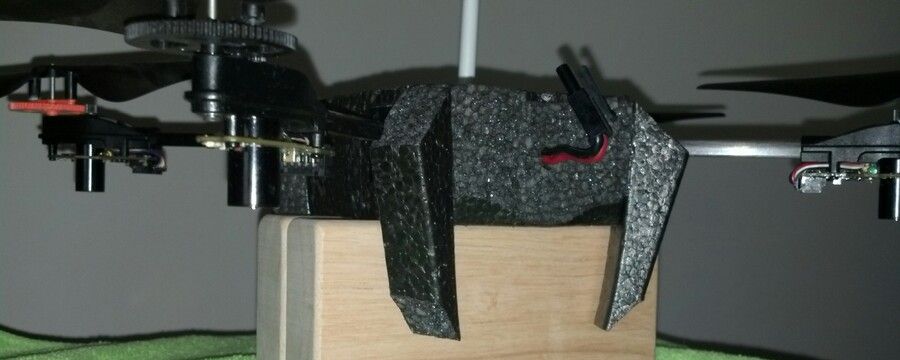

Rear view

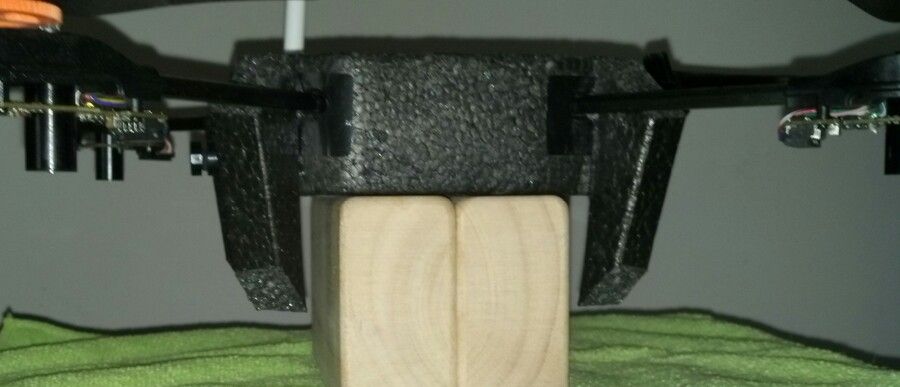

Side

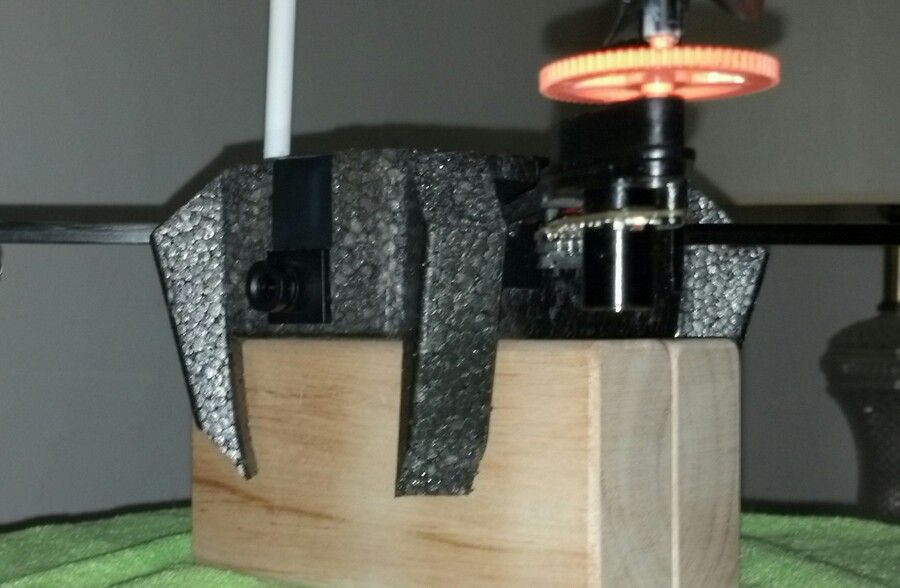

Front

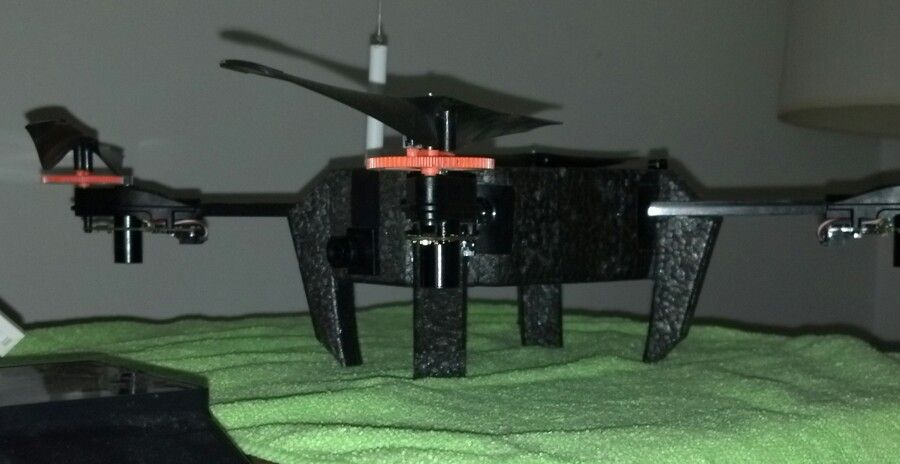

Stance

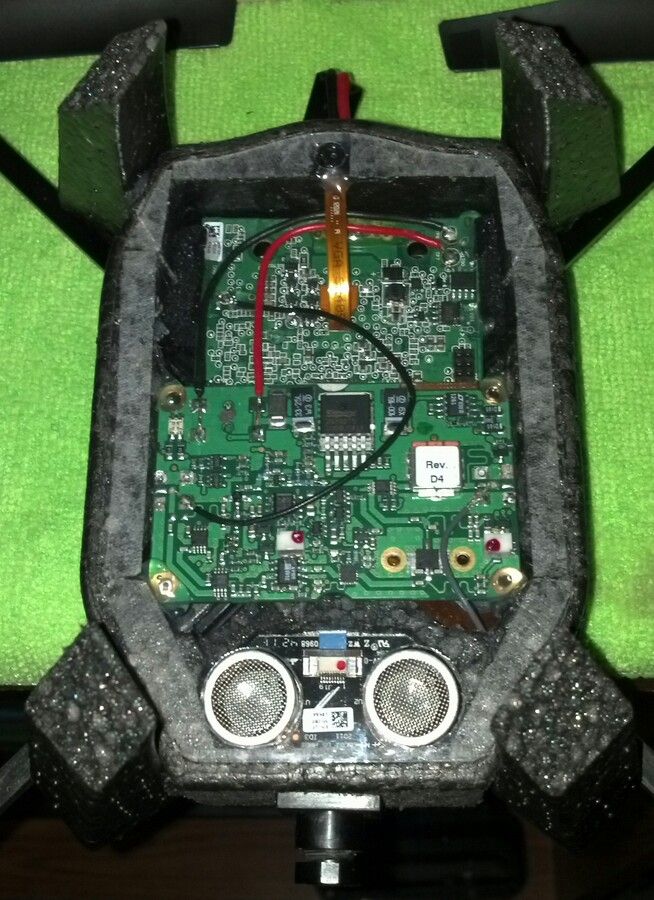

From below with clear bottom installed



Total ground clearance : 4centimeters (just over 1.5inches)
Total weight including hot glue : 3.3grams
Flight test : perfect... No problems with aerodynamics or ultrasounds
Total Cost : $0

Looking like a Galapagos Turtle : Priceless :D



I'll keep this thread going as progress is made in a couple days with the mounting of the wheel (I think I have a rather unique idea for that also)

This should come out pretty cool lookin when it's done...

Mod list for BRICK GT :
*severe weight reduction
*camera relocated
*power plug relocated
*clear bottom plate
*table top mod (no battery tray)
*Garrocks Wheel Antenna Mod..................................................... http://www.ardrone-flyers.com/forum/viewtopic.php?f=8&t=4349
*1000mw RF-LINX booster........................................................... http://www.ardrone-flyers.com/forum/viewtopic.php?f=8&t=5220
*ZOP Power 3000mAh battery (182grams)............................... http://www.ebay.com/itm/261159220741
*BoggsD UltraFlight Gears and Pinions (orange)..................... http://www.ebay.com/itm/290868960730


See y'all real soon with some updates on this one...
Let's see what happens when three really solid WiFi mods come together in one crazy lookin brick.... Lookin forward to this build :twisted:
Last edited by DBS on 09 Mar 2013, 19:07, edited 16 times in total.
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

User avatar
ScubaSteve
I've been hit!!
Posts: 2106
Joined: 06 Oct 2012, 14:37
Drone Type: AR.Drone 2
Location: Worcester UK
Contact:

Re: Brick GT - Garrock's wheel meets DBS Power

Postby ScubaSteve » 27 Feb 2013, 20:24

I like that I'd use something like that if it'd fit in my case.

What's the material used for the bottom clear plate?
http://www.dronetec.co.uk << QuadMod RC Control for your Drone
http://www.facebook.com/dronetecgb << Like Us on Facebook


DBS
I've been hit!!
Posts: 2761
Joined: 15 May 2012, 16:27
Drone Type: AR.Drone 2
Location: Treasure Coast, Florida

Re: Brick GT - Garrock's wheel meets DBS Power

Postby DBS » 27 Feb 2013, 20:33

I used the back of a plastic blister pack that one of my kid's toys came in ...
Went from 7grams to 3grams on that little mod.
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

pbody2013
Serious flight time
Posts: 1477
Joined: 30 Dec 2012, 03:24
Drone Type: Bebop
Location: High River Alberta Canada

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby pbody2013 » 27 Feb 2013, 20:55

That's awesome. Brilliant DBS! I was going to ask about adding Garrock's Wheel to the mix, but thought it may be overkill for your setup. I think not. I'm sure you'll crush any distance records further into the ground. I may have to ditch the iphone now :lol:
"It seems to be flying alright, but it's making a funny noise"

DBS
I've been hit!!
Posts: 2761
Joined: 15 May 2012, 16:27
Drone Type: AR.Drone 2
Location: Treasure Coast, Florida

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DBS » 27 Feb 2013, 21:20

pbody2013 wrote:That's awesome. Brilliant DBS! I was going to ask about adding Garrock's Wheel to the mix, but thought it may be overkill for your setup. I think not. I'm sure you'll crush any distance records further into the ground. I may have to ditch the iphone now :lol:


The wheel antenna will actually be less powerful than the antenna I've been using... Going from 3dBi to 1.5dBi will be a step backwards in range and sensitivity... BUT .... I don't like the dipole mast solution too much either so this is a way of clearing off my top deck and moving the weight down and centering it better...

The question has always been bouncing around in my brain... To go from vertically polarized to horizontal... From over the drone to under the drone... With the power I have available now... What are the possibilities with this kind of setup??

Waiting on some things in the mail (from DaZa and Garrock) to make sure everything is running as clean as possible... And we shall see :ugeek:
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

pbody2013
Serious flight time
Posts: 1477
Joined: 30 Dec 2012, 03:24
Drone Type: Bebop
Location: High River Alberta Canada

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby pbody2013 » 27 Feb 2013, 21:25

Ah gotcha. I guess you will see the possibilities now :)
"It seems to be flying alright, but it's making a funny noise"

User avatar
ScubaSteve
I've been hit!!
Posts: 2106
Joined: 06 Oct 2012, 14:37
Drone Type: AR.Drone 2
Location: Worcester UK
Contact:

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby ScubaSteve » 27 Feb 2013, 21:44

How did you make the holes for the ultrasonics as my experience with drills on thin plastic is it tends to chew it up
http://www.dronetec.co.uk << QuadMod RC Control for your Drone
http://www.facebook.com/dronetecgb << Like Us on Facebook


DBS
I've been hit!!
Posts: 2761
Joined: 15 May 2012, 16:27
Drone Type: AR.Drone 2
Location: Treasure Coast, Florida

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DBS » 27 Feb 2013, 21:47

X-acto bro... And a steady hand for 20 frickin minutes :lol:

Scissors for the boarder... Hole punch for the camera... But the ultrasounds are a bitch :twisted:
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

DaZa
I've been hit!!
Posts: 4113
Joined: 05 Nov 2012, 02:32
Drone Type: AR.Drone 2
Location: Melbourne, Australia
Contact:

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DaZa » 27 Feb 2013, 22:00

DroneBonerStallone wrote:X-acto bro... And a steady hand for 20 frickin minutes :lol:

Scissors for the boarder... Hole punch for the camera... But the ultrasounds are a bitch :twisted:

Aint that the truth!

Takes me about 15 mins to make up a new bottom plate and all that is cutting out those ultrasonics holes!

Need to make another one soon... so worth it for the weight reduction... and looks AWESOME :)

User avatar
sokre988
Ready for take off
Posts: 43
Joined: 23 Feb 2013, 02:38
Drone Type: AR.Drone 2
Location: Croatia

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby sokre988 » 27 Feb 2013, 22:04

Nice landing gears ;) ..it reminds me of robotic mule that military use for transport :P
http://www.youtube.com/watch?v=gtoV3uZPL14


..btw. what type of gear shaft do you use? ...stock or titanium?
..I saw on ebay titanium gear shafts but don´t see any positive thing why to use except that I can brag about it :D
(also stainless steel bearings with ceramical balls, but those are very expensive :cry: )
AR Drone 2.0 --> custom firmware --> Prestigio Multipad 8" tablet --> AR Drone Flight Pro app

DBS
I've been hit!!
Posts: 2761
Joined: 15 May 2012, 16:27
Drone Type: AR.Drone 2
Location: Treasure Coast, Florida

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DBS » 27 Feb 2013, 22:11

I use stock shafts... Although I would also get a set of those titaniums just cuzz I like that word... 8-)
I don't see anybody posting the weight of a set... All that stuff adds up

I do a gear mod that saves some weight along with BoggsD UltraFlights being lighter already right out of the box... But I wonder what the total savings would be out at the end of the boom if we added them all up

Gear trim mod
Titanium shafts
Ceramic bearings
Landing gear removal

All that stuff together might be a pretty decent cut in weight out in the corners where it counts ;)
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

pbody2013
Serious flight time
Posts: 1477
Joined: 30 Dec 2012, 03:24
Drone Type: Bebop
Location: High River Alberta Canada

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby pbody2013 » 27 Feb 2013, 22:24

DaZa wrote:
DroneBonerStallone wrote:X-acto bro... And a steady hand for 20 frickin minutes :lol:

Scissors for the boarder... Hole punch for the camera... But the ultrasounds are a bitch :twisted:

Aint that the truth!

Takes me about 15 mins to make up a new bottom plate and all that is cutting out those ultrasonics holes!

Need to make another one soon... so worth it for the weight reduction... and looks AWESOME :)

Wouldn't a hole saw work on that? I've drilled tons of stuff with those including plastic, and never had a prob. Never did something as thin but I'd think it would work.
"It seems to be flying alright, but it's making a funny noise"

User avatar
ScubaSteve
I've been hit!!
Posts: 2106
Joined: 06 Oct 2012, 14:37
Drone Type: AR.Drone 2
Location: Worcester UK
Contact:

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby ScubaSteve » 27 Feb 2013, 22:31

a hole saw like you use on wood wouldnt work
http://www.dronetec.co.uk << QuadMod RC Control for your Drone
http://www.facebook.com/dronetecgb << Like Us on Facebook


DBS
I've been hit!!
Posts: 2761
Joined: 15 May 2012, 16:27
Drone Type: AR.Drone 2
Location: Treasure Coast, Florida

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DBS » 27 Feb 2013, 22:37

There's still that guy that sells them on ebay.... http://www.ebay.com/itm/111019889519
WORLD RECORD AR Drone flight CLICK HERE
WORLD RECORD Phantom 2 Vision + flight CLICK HERE

DaZa
I've been hit!!
Posts: 4113
Joined: 05 Nov 2012, 02:32
Drone Type: AR.Drone 2
Location: Melbourne, Australia
Contact:

Re: BRICK GT - Garrock's wheel meets DBS Power

Postby DaZa » 28 Feb 2013, 01:10

pbody2013 wrote: Wouldn't a hole saw work on that? I've drilled tons of stuff with those including plastic, and never had a prob. Never did something as thin but I'd think it would work.

Nope a hole saw would cause the material to crack and break.

This stuff is thin, I use a takaway food container lid its perfect size, weight and clear.
